Duty cycle 270A @ 25%
400V ±15%, 3Ph 50/60Hz
Generator compatible
Lightweight: only 14.3 kg
Low standby power consumption below 19W and efficiency>85%
Manual and synergic MMA – Pulsed
Fan on demand (Intelligent F.A.N.)
VRD (Voltage Reduce Device)
Ability to weld cellulosic electrodes
3-year warranty
2 041,67 € tax excl.
Duty cycle 270A @ 25%
400V ±15%, 3Ph 50/60Hz
Generator compatible
Lightweight: only 14.3 kg
Low standby power consumption below 19W and efficiency>85%
Manual and synergic MMA – Pulsed
Fan on demand (Intelligent F.A.N.)
VRD (Voltage Reduce Device)
Ability to weld cellulosic electrodes
3-year warranty
Description

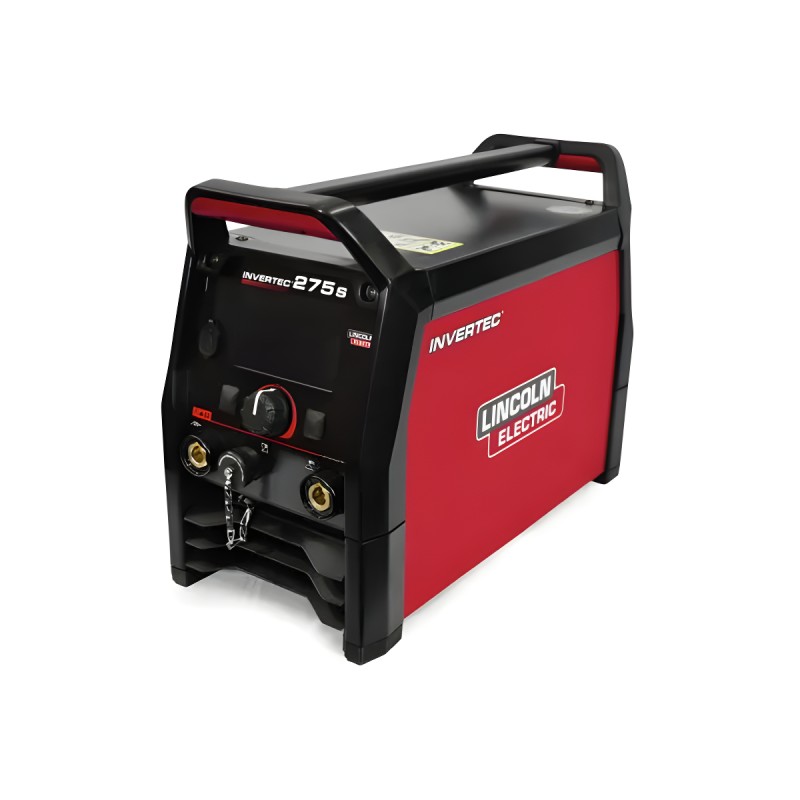

The INVERTEC® 275S is a next-generation MMA inverter that marks a new step towards the future of professional welding, offering superior welding quality and high-performance processes that increase productivity.
The new INVERTEC® 275S is designed with the latest energy-saving technologies and withstands extreme climatic conditions thanks to its unique design. To achieve exceptional welding performance, the INVERTEC® 275S is based on a digital communication system and integrated communication tools such as USB, enabling precise traceability and monitoring of your welding activities.
Processes: MMA (manual and synergic + Pulsed) and TIG Lift.
Possible welding:
Materials • Unalloyed steel • Stainless steel • Low-alloy steel • Aluminium alloys • Nickel alloys • Titanium alloys
Applications
• General fabrication • Heavy fabrication • Infrastructure • Transportation • Chemical industry • Maintenance and repair • Shipbuilding
The product complies with standard EN50504 and EN60974-14 (calibration). The operator can perform self-calibration.
Included with purchase:
• Power cable 3 m (without plug)
• User manual on USB key
Characteristics of LINCOLN - 275S | MMA INVERTEC welding machine
| Supply voltage (in Volts) | 400 V -3Ph -50/60 Hz | Fuse (in Amperes) | 16 A |
| MMA power range (in Amperes) | 5 - 270 A | Duty cycle at 40°C MMA | 250 A@35% - 230 A@60% - 180A@100% |
| Open circuit voltage (in Volts) | 74 V | Possible electrode type | Rutile - basic |
| Usable rutile electrode diameter (Ø) for the unit (in mm) | From 1.6 to 6 mm | Ø basic electrode usable by the unit (in mm) | 2 to 6 mm |
| Usable Tungsten electrode diameter (Ø) | 1.6 to 4 mm | Nature of materials to be TIG welded | steel, stainless steel, copper, cast iron, titanium, nickel |
| Ventilated | Yes | Nature of materials to be MMA welded | Steel - Stainless steel - Cast iron - Aluminum |
| Generator compatible | Yes | Welding process | MMA / TIG LIFT |
| Warranty | 3 years | Dimensions (in mm) | 360 X 230 X 498 |
| Weight in kg | 14,3 | Protection rating | IP23 |
| Usage | Industry Industry |
TIG ignition type | TIG Lift |
| Pulse function | yes | Gouging Mode | No |
| Max MMA Power | 300 A Max |
