MMA and TIG welding
Special 6010 mode for controlling cellulosic electrodes
Maximum power: 250A at 40%
Welding current 10-250 A
Power supply 400 V three-phase
Open circuit voltage 81 VDC
Protection class: IP23S
Dimensions: 477 x 188 x 360 mm

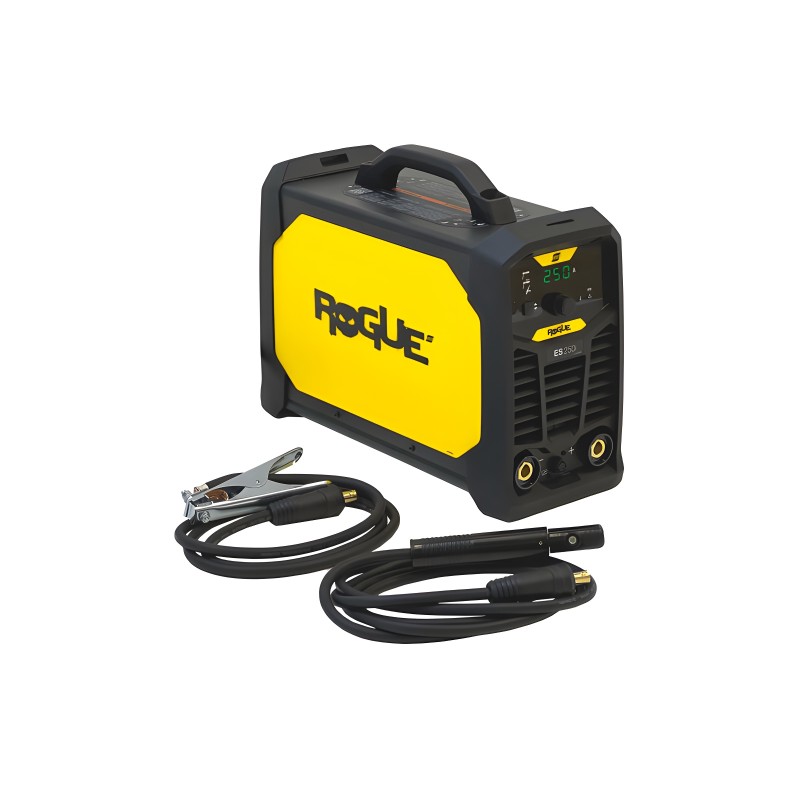

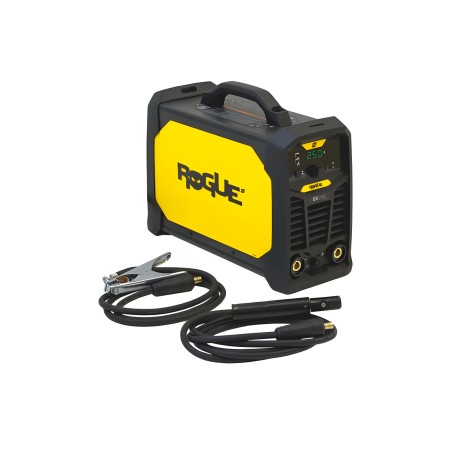

Supplied with 3m ground cable, 3m electrode holder and 2.5m power cable (without plug)
1 329,17 € tax excl.
MMA and TIG welding
Special 6010 mode for controlling cellulosic electrodes
Maximum power: 250A at 40%
Welding current 10-250 A
Power supply 400 V three-phase
Open circuit voltage 81 VDC
Protection class: IP23S
Dimensions: 477 x 188 x 360 mm
Supplied with 3m ground cable, 3m electrode holder and 2.5m power cable (without plug)
Description
The Rogue ES 250i is a MMA (Stick) coated electrode welding machine (including cellulosic electrodes) and Live TIG welding.
With a maximum output capacity of 250 A combined with a high duty cycle, the Rogue ES 250i delivers the power needed to handle a wide range of welding tasks, from repair and maintenance to heavy fabrication projects.
The machine features several settings, such as Hot Start and Arc Force, to adapt the arc to the desired preferences and electrode type. The special 6010 mode provides additional power to control cellulosic electrodes and thus deliver high-quality results.
The compact dimensions of the entire ESAB Rogue range make it easy to move between workstations or job sites, helping you maximize efficiency and productivity. Built with durability in mind, they feature a robust construction that withstands the rigors of intensive use.
From the robust enclosure to the solid internal components, every aspect is designed to deliver lasting reliability in demanding working conditions.
Industries:
- Light fabrication
- Repair and maintenance
- General fabrication
- Industrial and general fabrication
- Steel industry
Characteristics of ESAB - ROGUE ES 250i THREE-PHASE + Cellulosic
| MMA power range (in Amperes) | 10 - 250 | Duty cycle at 40°C MMA | 204A @ 60% - 250A @ 40% |
| Possible electrode type | Rutile - basic - cellulosic | Ventilated | Yes |
| Warranty | 3 years | Weight in kg | 14 |
| Protection rating | IP23S | Usage | Professional, Industry |
| Electrode diameter | 2.5 mm, 4 mm, 3.2 mm, 2.0 mm, 1.6 mm | Electrode type | Rutile, Basic, Aluminium, Hardfacing, Gouging, Rutile-basic 299, Rutile-Cellulosic, Cellulosic |
| Thickness to weld | 1.5 to 3 mm, 2.5 to 6 mm, 5 to 8 mm | Max MMA Power | 250 A Max |
