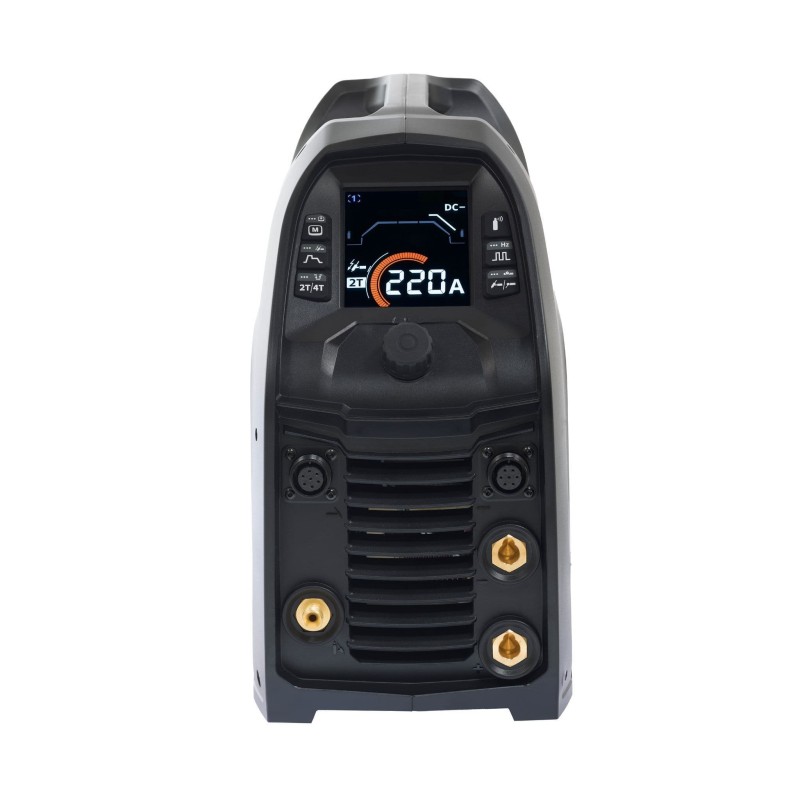

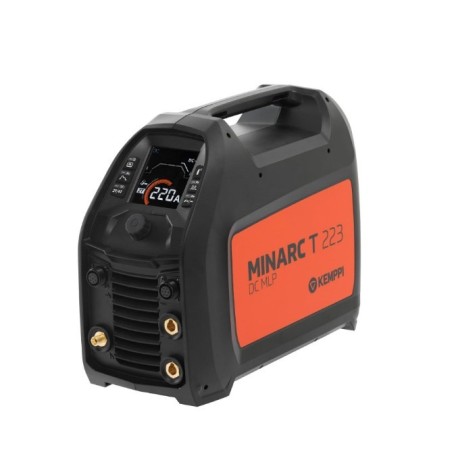

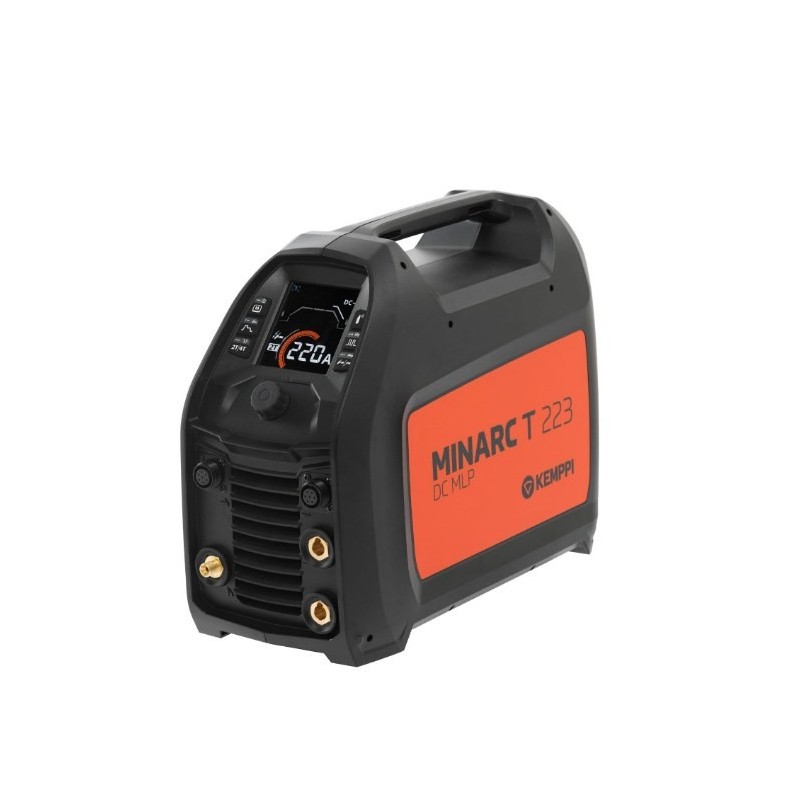

KEMPPI - MINARC TIG T223DC MLP GM with TX225 torch, 8 m long

Welding and pickling with a single TIG machine
The Minarc T223 AC/DC is a brand new single-phase 220 A AC/DC TIG welding unit, integrating an electrolytic weld pickling process.

The Minarc T223 AC/DC includes standard and pulsed welding functions, as well as memory channels and remote control options.
The adjustment controls are easy to use, and the large, clear color screen features a protective cover against impacts.

The new MAX Weldclean process is simple and quick to use.
Converting the TIG torch to pickling mode takes only a few moments. Your welds are clean, ready and perfect faster.

You weld, clean the welds with a low current and a cleaning solution, then neutralize with water.

The unit comes with:
- a TX225G torch with a length of 4 m
- A ground clamp + cable

Rogue ET180i is a TIG welder with HF ignition in direct current (DC) and MMA, built with the latest inverter technologies to guarantee an extremely stable welding arc, ideal for working on iron, stainless steel, brass, cast iron...

The electronic boards of the Rogue ET 201i PRO are protected by a special coating that insulates them from moisture and dust (IP23S protection). The body is very robust and the dimensions are compact, allowing the operator to transport and use this welding machine in the workshop or on-site even in adverse environmental conditions.

The Rogue ET201i PRO can generate a maximum welding current of 200A and has a duty cycle of 129 A at 60%; these characteristics make this welding machine ideal for installation, maintenance and light carpentry work.

The control panel of the Rogue ET201i PRO is easy to use and the convenient LCD screen allows the operator to accurately view the welding parameters. From the control panel, it is possible to modify the TIG welding parameters to adapt the process to the operator's needs: LIFT or HF trigger mode, pre and post gas, initial and final current, up and down slope, 2T or 4T.

If you use the Rogue ET201i PRO in MMA mode for MMA welding (electrode holder optional), it is possible to select the Arc-Force and hot start percentages that best suit the welder's operating style; furthermore, from the control panel, it is possible to select the welding mode for electrodes with CELLULOSE coating.

The Rogue ET 201i is delivered with:

- Instruction manual
- Shoulder strap for transport
- ESAB SR26 TIG torch, 4 meters, with a grey Cerium tungsten electrode Ø 2.4 mm)
- Ground cable cross-section 16mm2 – length 3 m
- Gas hose with quick connector

This unit replaces the ESAB ROGUE ET200i PRO model and additionally features the PULSE function compared to the previous model.

The Rogue's Pulse function allows welders to better control heat input and arc stability. The controlled pulse action helps create a stable arc, avoiding excessive spatter and minimizing the risk of weld defects or the need for post-weld cleaning. The Rogue's Pulse technology facilitates penetration and fusion in the welding process, which is essential for creating strong and durable weld beads and for ensuring the structural integrity of fabricated components. Pulse technology helps minimize the heat-affected zone, thereby reducing the likelihood of material distortion or unintended metallurgical changes.

DC TIG and MMA welding
Coated electrode diameter: 1.6–4 mm
Duty cycle at 60%: 170 A
Energy-efficient PFC technology
HF and Lift arc starting
Lightweight and portable at just 9.6 kg
Refined arc starting and a stable welding arc
4 memory channels
Color LCD screen for an intuitive user interface
Adjustable pre-gas and post-gas flow
Adjustable current upslope and downslope
Includes a TIG TX225G4 torch, 8 meters long

MLP: Pulse function and Minilog control
Coated electrode diameter: 1.6–4 mm
Duty cycle at 60%: 170 A
Energy-efficient PFC technology
HF and Lift arc starting
Lightweight and portable at just 9.6 kg
Refined arc starting and a stable welding arc
4 memory channels
Color LCD screen for an intuitive user interface
Adjustable pre-gas and post-gas flow
Adjustable current upslope and downslope
Includes a TIG TX225G4 torch, 4 meters long
Handheld and foot-operated remote control options

The PROTIG 231L DC PFC is a pulsed DC TIG welding generator with an integrated water cooling unit. Its PFC technology allows it to operate from 195 V to 265 V and achieve a very stable arc even on 100 m site extension leads. In stick electrode welding, its Pulsed MMA mode facilitates upward welding.

2 welding processes possible with this unit:

-TIG DC
DC Standard: welding with smooth current on the majority of ferrous materials.
Pulsed DC up to 2 kHz: controls the temperature of the weld pool, limits distortion and allows the joining of thin sheet metal from 0.3 mm.

2 tacking modes:
- Spot: adjustable tacking from 0.1 to 60 seconds for parts prior to welding.
- Pulse: adjustable tacking from 0.01 to 60 seconds on thin sheet metal prior to welding.
2 arc ignition types:
- HF non-contact
- LIFT by contact for electrically sensitive environments. 3 trigger modes: 2T, 4T and 4T LOG.

Advanced secondary regulation for optimal arc stability and constant current in all positions.
Memory storage of up to 50 programs per process for repetitive tasks. Advanced menu for optimal welding control.
Current and voltage display during and after welding (WPS/PQR)
Automatic torch detection: compatible with blade-type, dual-button, potentiometer and Up&Down torches.
Remote controls (foot pedal or manual, optional) connectable without tools.
VRD activatable via an internal switch to lower the open-circuit output voltage to < 35 V.
Intelligent fan management to reduce power consumption, dust intake and unit noise.

MMA
MMA Standard: rutile and basic electrodes (up to Ø 5 mm).
Pulsed MMA up to 500 Hz: facilitates vertical upward welding (pipe joints / pipeline…)

Product highlights
Accepts extension leads up to 100 m.
Reinforced casing and anti-shock feet.
Compact and easily portable on site.
Protected against overvoltages up to 400 V (PROTEC 400).

Unit delivered with:
1 SR20 DB torch 4 m long
1 earth clamp + cable section 25 mm² length 2 m
1 electrode holder + cable section 25 mm² length 2 m

Sprinter 200 T

The PROTIG 231 DC FV is a pulsed DC TIG welding generator, very compact and portable. Its PFC technology allows it to operate from 85 V to 265 V and to achieve a very stable arc even on 100 m site extension leads. In electrode welding, its Pulsed MMA mode facilitates vertical upward welding.

OPTIMISED DC WELDING
Secondary regulation: ensures optimal arc stability and constant current in all positions.
- TIG DC: provides quality welding on all ferrous materials such as steel, stainless steel as well as copper and its alloys.
- Pulsed TIG DC up to 2 kHz: controls the temperature of the weld pool, limits deformation and enables assembly of thin sheets from 0.3 mm.
- Adjustable SPOT from 0.1 to 25 sec: fast and precise tacking before welding thin sheets.
- 2 arc starting types: HF contactless or LIFT by contact for electrosensitive environments.
- 3 trigger modes: 2T, 4T and 4T LOG. Automatic torch detection: compatible with blade, dual-button and potentiometer torches
- 2 tacking modes: - Spot: adjustable tacking from 0.1 to 60 seconds of parts before welding.
- Pulse: adjustable tacking from 0.01 to 60 seconds on thin sheet before welding

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 5 mm).
Pulsed MMA: facilitates vertical upward welding (pipes/pipeline…).
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking on contact with the workpiece
- Hot Start: facilitates arc striking and is adjustable in seconds depending on the metal type
- Arc Force: momentary current increase in difficult welding situations.

MAXIMUM PRODUCTIVITY
Advanced secondary regulation for optimal arc stability and constant current in all positions.
Storage of up to 50 programs per process for repetitive tasks.
Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS). Automatic torch detection: compatible with blade, dual-button, potentiometer and Up&Down torches.
Remote controls (foot pedal or manual, optional) connectable without tools.
VRD activatable via an internal switch to lower the no-load output voltage to < 35 V.
Intelligent fan management to reduce power consumption, dust intake and unit noise.

IDEAL ON SITE
Accepts extension leads up to 100 m.
Reinforced body and anti-shock pads.
Compact and easy to move on site.
Protected against overvoltages up to 400 V (PROTEC 400)

This ESAB Renegade ET 210Ip Advanced is a single-phase professional TIG welding machine with high-frequency ignition and MMA, with protection rating IP23, capable of being used even in the most demanding environments.

Thanks to its low weight, the various lifting points provided on the outer body and the high-quality shoulder strap, the Renegade ET 210Ip Advanced can be transported easily.

Renegade ET 210Ip Advanced is equipped with an integrated active PFC circuit that allows it to be used even on a low-power network or when an extension cord is used (length up to 100 m).

Easy to use. It offers direct access to parameter settings and features a
simple and intuitive user interface that allows you to read the parameters, even from a distance.

It allows MMA welding of rutile, basic, stainless steel, cast iron electrodes... and also cellulosic .

Technical specifications:

- High robustness with IP23 protection rating, for use in workshop and on job sites, in demanding environments

- Pulsed TIG up to 999 Hz to increase control of heat input and weld pool

- Integrated PFC circuit for a stable arc even with an extra long power cable, up to 100 m

- Intuitive and quick-to-configure panel, for greater precision and reduced downtime

- Dual functionality - Current mode trigger to switch between two output current levels to control
heat input and weld pool size

- 4.3-inch color screen with visual display of settings

- Easy access to up to 10 personal programs via the flashlight button

- Modular system to connect the cooling unit (optional) and the trolley (optional)
without tools

Examples of application sectors
Shipbuilding and offshore
Civil construction
Pipe fabrication
Repair and maintenance
Heavy fabrication
Industrial and general manufacturing
Mining
Steel formwork

Delivered with:
1 cooling unit EC 1001
1 ground clamp + 25 mm² cable 3 m long - 13 mm connector
1 strap for carrying the unit over the shoulder when working at height + anchor points for lifting.
1 TIG torch Exeor SR 21 4 m long
1 gas hose 4 m long

Electrode holder optional

This unit enables welding with tungsten electrodes (TIG welding) on steel, stainless steel, copper, nickel...including aluminium.

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It comes with a 140A TIG torch with trigger, 4 m in length, plus a ground clamp.

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High-frequency arc starting WITHOUT CONTACT

TIG 2T/4T (manual or automatic welding)

TIG SPOT enables tack welding of parts prior to welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc extinction, thereby preventing crater formation at the end of the weld bead.

ARC FORCE: This process increases amperage when the welding arc is held short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: when welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics.

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor based on the current intensity and welding duration.

VRD: Improves safety during welding operations in damp environments

It also features the PULSE function, particularly suitable for welding thin sheet metal where low heat input to the workpiece is required, and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision improves as well.
It also features the EASY PULSE system, allowing immediate welding in pulsed mode even if the welder is not accustomed to TIG welding, thanks to automatic parameter adjustment.

THINSPOT function, enabling fast and precise spot welding.

For connecting the unit to gas, it is recommended to use fitting 804208.

Rogue ET181i is a DC HF-start TIG and MMA welding machine built with the latest inverter technologies to guarantee an extremely stable welding arc, ideal for working on steel, stainless steel, brass, cast iron...

The electronic boards of the Rogue ET181i are protected by a special coating that insulates them from moisture and dust (IP23S protection). The body is very robust and the dimensions are compact so that the operator can transport and use this welding machine in the workshop or on site even in adverse environmental conditions.

The Rogue ET181i can generate a maximum welding current of 180 A and has a duty cycle of 116 A at 60%; these characteristics make this welding machine ideal for installation, maintenance and light joinery work.

The control panel of the Rogue ET181i is easy to use and the practical LCD screen allows the operator to accurately view the welding parameters. From the control panel, it is possible to modify the TIG welding parameters to adapt the process to the needs the operator faces: LIFT or HF trigger mode, pre and post gas, initial and final current, up and down slope, 2T or 4T.

If you use the Rogue ET181i in MMA mode for MMA welding (electrode holder optional), it is possible to select the percentage of Arc-Force and hot start that best suits the welder's operating style; furthermore, from the control panel, it is possible to select the welding mode for CELLULOSE-coated electrodes.

The Rogue ET 181i comes with:

- Instruction manual
- Shoulder strap for transport
- ESAB SR26 TIG torch 4 metres with a grey Cerium tungsten electrode Ø 2.4 mm)
- Ground cable 16mm2 cross-section - length 3 m
- Gas hose with quick connector

This machine replaces the ESAB ROGUE ET180i model and additionally features the PULSE function compared to that previous model.

The Pulse function of the Rogue allows welders to better control heat input and arc stability. The controlled pulse action helps create a stable arc, avoiding excessive spatter and minimizing the risk of weld defects or the need for post-weld cleaning. Rogue's Pulse technology facilitates penetration and fusion in the welding process, which is essential for creating strong and durable weld beads and for ensuring the structural integrity of fabricated components. Pulse technology helps minimize the heat-affected zone, thereby reducing the likelihood of material distortion or unintended metallurgical changes.

The PROTIG 201 AC/DC represents the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium).
It offers very high precision in many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooling unit, it allows the use of more ergonomic TIG torches

6 TIG AC/DC welding processes

TIG DC: Ensures quality welding on all ferrous materials such as steel, stainless steel, as well as copper and its alloys, titanium…
Pulsed TIG DC: Controls the temperature of the weld pool, limits deformation and thus allows the joining of thin sheets from 0.3 mm.
TIG DC Spot: Pre-assembles ferrous metal parts by tack welding

TIG AC Easy: Simplifies the use of the welding unit thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface
TIG Standard: Dedicated to welding aluminium and its alloys (Al, AlSi, AlMg, AlMn…). Alternating current ensures preliminary cleaning of the aluminium for a quality weld.
TIG AC Spot: Pre-assembles aluminium parts by tack welding.

2 stick electrode welding modes

MMA Standard: Accepts basic, rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates vertical up-position welding (pipe fittings/pipeline...).

User assistance for the welder

2 arc ignition types: HF non-contact or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press again to stop welding.
- 4T "LOG": the operator can switch between 2 welding currents at any time with a brief pulse on the trigger (hot current and cold current)

MMA welding assistance: - Anti-sticking: reduces the risk of electrode sticking when in contact with the workpiece
- Hot Start: facilitates arc striking and can be adjusted according to the type of metal
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is delivered only when the electrode is in contact with the workpiece (not activated by default).

• Memory for up to 50 programs per process
• Connectivity for remote controls (foot pedal, manual remote control)
• Current/voltage display after welding (verification of compliance with WPS/WPQR)
• Reinforced casing and anti-shock pads

Unit delivered without accessories

This machine allows welding with tungsten electrodes (TIG welding) on steel, stainless steel, cast iron, copper, nickel, and titanium.

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It comes with a 140A trigger TIG torch 4 m in length + ground clamp.

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High-frequency NO-CONTACT arc starting

TIG 2T/4T (manual or automatic welding)

TIG SPOT allows tack welding of parts before welding.

HOT START adjustable: additional starting power when an electrode is difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overload and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

(automatically adjusted by the microprocessor according to the current intensity and welding duration.

It also features the PULSE function, particularly suited for welding thin sheets where low heat input to the welded workpiece is required and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision also improves.

THINSPOT function, enabling fast and precise spot welding.

For connecting the machine to gas, it is recommended to use fitting 804208.

The PROTIG 200 AC/DC (200 A) is a versatile dual-process welding machine for TIG AC/DC and MMA (coated electrode) welding, in a compact and portable format. It allows joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper, magnesium or titanium). Its advanced secondary regulation ensures optimal arc stability and constant current in all positions.

5 TIG WELDING MODES

In DC mode
Standard DC: welding in direct current on the majority of ferrous materials.
Pulsed DC: limits heat build-up in the workpieces. Ideal for very thin sheet metal.

In AC mode
Pulsed AC: limits heat build-up in the workpieces. Ideal for very thin sheet metal.
AC Easy: simplifies use of the welding machine thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface.

OPTIMISED TIG SETTINGS
SPOT mode (TIG DC or AC): fast and precise tacking before welding thin sheet metal.
2 types of arc starting: HF contactless or LIFT by contact for electrically sensitive environments.
3 trigger modes: 2T, 4T and 4T LOG. Automatic torch detection: compatible with latching and dual-button torches.

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 4 mm).
Pulsed MMA: facilitates vertical uphill welding (pipes/pipeline…).
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking when in contact with the workpiece
- Adjustable Hot Start: facilitates arc striking and is adjusted in seconds according to the metal type
- Arc Force: momentary increase in current in difficult welding situations.

MAXIMUM PRODUCTIVITY
Memory for up to 30 programs per process.
Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS).
Reinforced casing with anti-shock pads.
Compact and easily movable on site.
Intelligent ventilation management to reduce power consumption, dust intake and machine noise.
Protected against overvoltages up to 400 V (PROTEC 400).

Delivered with:
1 TIG 26DB torch length 4 m, supplied with 1 Ø 1.6 electrode + 1 Ø 2.4 mm Cerium grey electrode (for stainless steel and steel welding) + A gas diffuser and an electrode holder for both tungsten electrode diameters + A GR5 ceramic nozzle and a GR7 ceramic nozzle
1 earth clamp + cable 25 mm² section length 2 m
1 electrode holder + cable 25 mm² section length 2 m

This machine allows welding with tungsten electrodes (TIG welding) steel, stainless steel, copper, nickel ...including aluminium .

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High frequency CONTACTLESS ignition

TIG 2T/4T (manual or automatic welding)

TIG SPOT allows tacking of parts before welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor according to the current intensity and the welding duration.

VRD: Improves safety during welding operations in damp environments

It also features the PULSE function particularly suited for welding thin plates where low heat input to the workpiece is required and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision improves as well.
It also features the EASY PULSE system allowing immediate pulsed mode welding even if the welder is not familiar with TIG welding, thanks to automatic parameter adjustment

THINSPOT function, enabling fast and precise spot welding.

For gas connection of the machine, it is recommended to use fitting 804208.

Ultra-compact and designed for craftsmen, the PROTIG 161 DC HF (160 A) delivers high-quality welds on mild and stainless steels thanks to its advanced secondary regulation. Its intuitive interface makes parameter adjustment straightforward.

OPTIMISED DC WELDING
Secondary regulation: ensures optimal arc stability and constant current in all positions.
TG DC: ensures quality welding on all ferrous materials such as steel, stainless steel, but also copper and its alloys…
TIG DC Pulsed: controls the temperature of the weld pool, limits distortion and thus allows the joining of thin sheets from 0.3 mm.
SPOT: fast and precise tacking before welding thin sheets.
2 ignition types: HF non-contact or LIFT contact for electrosensitive environments.
3 trigger modes: 2T, 4T and 4T LOG.
Automatic torch detection: compatible with blade and double-button torches

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 4 mm)
Pulsed MMA: facilitates upward vertical position welding (pipes/pipeline…)
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking upon contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable in seconds depending on the metal type
- Arc Force: temporary current increase in difficult welding situations.

INTUITIVE
Current and voltage display during and after welding (WPS/WPQR).
Memorisation of 10 programs per process for perfect reproducibility of your welds.
Intelligent fan management to reduce power consumption, dust intake and machine noise.

→ Supplied with:
1 TIG torch SR17 DB - 4 m, + accessories *
1 electrode holder and earth clamp with 25 mm² section cable, length 2 m.

* 1 electrode holder Ø 1.6 and 2.4 mm
1 diffuser for electrode Ø 1.6 and 2.4 mm
1 ceramic nozzle GR7 and GR5
1 long cap and 1 short cap
