Optrel - CRYSTAL 2.0 silver welding helmet

This pack includes:

1 Helix CLT lifting cell black welding helmet
1 SWISS-AIR respiratory protection system with control panel including half mask + hoses + head and neck strap.
1 Blower unit + charger
1 shoulder harness
1 storage bag

Automatic wide-screen welding helmet Black colour XL field of view: 100x50mm Construction: PP True Colour Technology Fixed light shade: DIN3 Variable dark shade: DIN 4/5 - 9/9-13 Solar power + 2 replaceable CR2450 batteries Low battery alarm and test button Number of sensors: 4 Automatically switches from light to dark shade on arc strike: less than 1/30,000 seconds Return to light state from 0.1S to 1S UV protection: DIN16 Optical class 1/1/1/1 Grinding mode Weight 550 grams

Application fields: MMA 5 to 400 / TIG 2 to 300 / MIG-MAG 5 to 400 Standards: CE / EN 175B / EN 166 / EN 379

The GYSMATIC 9/13 AIR TRUE COLOR XL is a welding mask equipped with a powered air purifying respiratory protection system. 2 in 1, it protects the eyes from IR/UV during welding operations and preserves the operator's airways.

• The XL lens provides an optimal field of view.
• True Color technology ensuring incredible colour accuracy during welding.
• The 5 available shades (9> 13) adapt to all welding operations. It allows TIG welding from as low as 5 A.
• The 4 solar sensors ensure very high sensitivity and an ultra-fast reaction time (0.08 ms).
• 3 adjustable airflow rates according to needs (from 170 l/min to 230 l/min).
• The lithium battery provides up to 8 hours of battery life.
• The TH2PRSL rated filter retains 99.996% of welding particles.
• Standards EN 166 / EN 175 / EN 379 / EN 12941.
• Supplied with respiratory protection system, lithium battery, EU charger, harness, flow meter.

Consumables:
- Pre-filter (ref. 038417)
- TH2 filter (ref. 038424)
- TH3 filter (ref. 065734)

Welding helmet suitable for arc welding:

MMA (stick electrode) from 5 to 400 A
MIG-MAG (semi-automatic welding) from 5 to 400 A
TIG from 5 to 300 A

Adjustable shade: DIN 5 to 13; setting 5 to 8 for flame welding and 9 to 13 for arc welding.
Solar powered + 2 CR2450 batteries
Automatically switches from light shade to dark shade upon arc strike in 0.2 ms
Weight: 560 grams.

Viewing field 100 x 67 mm
Number of sensors: 4
Adjustable headband
Grinding position (Grind): the lens remains clear during grinding and cutting work.

Optical classification: 1/1/1/2
Compliant with standards EN 175 / EN 379

This Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Clear shade: 2 in grinding mode for maximum clarity
Weight 600 g
Temperature resistance: Welding helmet 220° and cover lens up to 137°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit all head shapes.
Storage bag
Micro USB charging cable
Cover lens
Warranty card.

PAPR connection equipment

2-year warranty with 1 additional year (excluding the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

Automatic welding headband mask for MMA, MIG-MAG and TIG welding, with adjustable darkening (DIN 4/5 ÷ 9/9÷13).
The LCD liquid crystal filter automatically darkens when the welding arc appears and quickly returns to its transparent state when it stops, eliminating the need to lift and lower the mask at each work break, allowing hands-free operation.
In addition to adjusting the filter sensitivity depending on the welding process, it also features external adjustment of the delay time for switching from dark to light state after the arc stops, depending on the brightness of the workpiece.
Features:
- lightweight and comfortable,
- adjustable auto-darkening filter,
- XL viewing area 100 x 67 mm
- 4 sensors
- dark-to-light delay adjustment,
- battery and solar powered,
- transparent glass filter protection.
Optical class 1/1/1/2

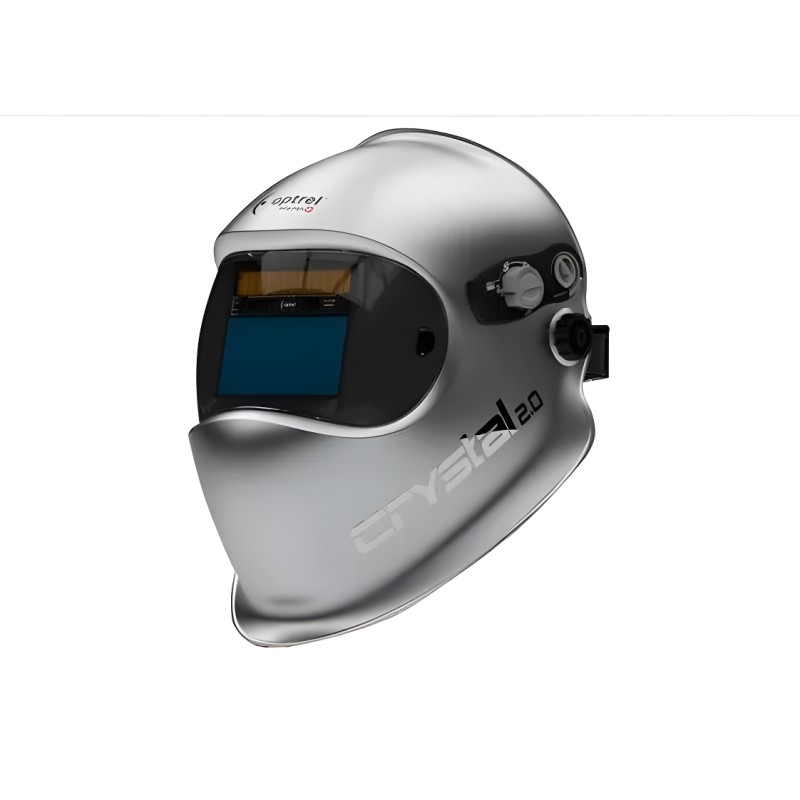

This Optrel CRYSTAL 2.0 welding helmet features 3 sensitivity sensors.
Power supply by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for excellent clarity
Weight: 482 g
Temperature resistance: Welding helmet 220° and outer protection screen up to 130°
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Delivered with:
1 headband adjustable in width and length.
Storage bag
2 batteries CR2032
1 replacement outer protection screen
Warranty card.

2-year warranty with 1 additional year (except for the accumulator) if the product is registered within the first 6 months after purchase on www.optrel.com.

The Optrel Panoramaxx CLT welding helmet features 5 sensitivity sensors.
Amperage adjustment range: up to 280 A.
The switching time of this helmet is 0.090ms at 20°C and 0.070ms at 55°C
The EN 379 classification of this model is: 1/1/1/2
Protection level (adjustable shade): 4-12 in automatic mode or 7-12 in manual mode.
Light shade: 2 in grinding mode for maximum clarity
Weight: 600 g
Temperature resistance: Welding helmet 220° and protective cover lens up to 137°
Compatible with MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.
Suitable for overhead welding in constrained positions.

Delivered with:
a standard Isofit headgear, adjustable in height, width and length to fit any head shape.
Storage bag
Micro USB charging cable
Protective cover lens
Warranty card.

2-year warranty with 1 additional year (except for the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

2 sweatbands are available

Front headband (front of the headband) reference 20-3100V 17
Length 17 cm x 2.5 cm wide.

Rear headband reference 203300V
Length 14 cm x 2.5 cm wide

The Lincoln Viking 3350 series welding helmets are the premium quality helmets from this manufacturer.

The 4C process gives these helmets the highest protection rating of 1/1/1/1 and a clearer view by minimising the traditional green tint.
A clearer view is a factor in reducing eye fatigue and therefore provides additional comfort for the welder, while also offering increased visibility of the weld pool for higher quality welding.

This welding helmet is available in 3 finishes and comes with a 3-year warranty.

It features 4 sensors, a large 133 x 144 mm screen, an internal shade adjustment from 5 to 13, and a grinding mode.
Supplied with a CR2450 battery and a carrying case.

Possible welding processes / MMA - TIG and pulsed TIG - MIG and pulsed MIG - flux-cored wire as well as gouging and grinding operations.

Essential for safety, the TECHNO 11 TRUE COLOR optoelectronic welding helmet protects the welder's face and eyes from UV, infrared and spatter. Fully automatic, the mask switches from the clear state to the shaded state in a fraction of a second, from the moment of arc strike.
Supplied with a headband, it frees the welder's hands and provides all the comfort needed for welding work.
Welding helmet suitable for arc welding:

MMA (covered electrode) from 10 to 150 A
MIG-MAG (semi-automatic welding) from 10 to 200 A
TIG from 10 to 175 A

Fixed shade: dark shade DIN 11 – light shade DIN 3
Solar powered
Automatically switches from light shade to dark shade upon arc strike. Returns to the clear state as soon as the arc stops.

Viewing area 98 x 35 mm
Adjustable headband
Weight 420 g

Optical classification standard: 1/1/1/1

Compliant with standards EN 175B / EN 166 / EN 379

This auto-darkening welding helmet features 2 sensors.
Solar power + 2 AAA batteries
Viewing area: 98 x 40 mm. Wrap-around shape for optimal head protection.
Switching time light/dark: 1/25000 sec
Return to light state adjustable from 0.1 to 1 second.
Adjustable shade from 9 to 13 for welding.
Grinding mode via internal button.

the "LS" technology applied to the lens of this welding helmet, in addition to its role of protecting against harmful rays, helps increase the penetration rate.
In clear mode, the lens lets more color through to the welder's eye, allowing a more precise rendering of detail by reducing the eye's adaptation effort.
The welder will be more precise in their movements and less fatigued during welding operations.

18-month warranty.

Optical class 1/1/1/2
Weight 475 g

Delivered with:
2 outer protective lenses
1 inner protective lens
1 sweatband
1 comfort cushion on headband.

SACTI P850 welding helmet suitable for MMA welding (coated electrode), semi-automatic welding (MIG-MAG), grinding, and flame welding.

Automatically switches to a dark shade in 1/3,000 of a second.
It features the TRUE-COLOR system for a more true-to-life color vision and reduced eye strain.

Operates with a CR2032 battery (included) + solar cell.

Intensity adjustment via external button.

All Sacit® auto-darkening masks are powered by batteries and integrated solar cells, ensuring reliable operation even in non-uniform or dark environments. The use of batteries also allows for faster darkening compared to masks powered solely by solar cells.

Viewing area: 39 x 96 mm
Filter dimensions: 110 x 90 mm
Adjustable sensitivity. Protection level DIN 4/9:13 during welding operations.
Number of sensors: 2.
Adjustable headband
Optical class: 1/1/1/2
Weight: 485 g

Download the brochure

This Optrel VEGAVIEW 2.5 welding helmet features 3 sensitivity sensors with the possibility of angle variation via a slider.
Powered by 2 x 3V CR2032 batteries.
The switching time of this helmet is 0.100ms at ambient temperature and 0.070ms at 55°C.
The EN 379 classification of this model is: 1/1/1/2.
Protection level (adjustable shade): 8-12.
Light shade: 2 in grinding mode for maximum clarity.
Weight: 482 g.
Temperature resistance: Welding helmet 220° and cover lens up to 137°.
Suitable for MMA, MIG/MAG and TIG welding as well as plasma cutting. This helmet also features a grinding mode.

Supplied with:
1 headband adjustable in width and length.
Storage bag.
2 x CR2032 batteries.
1 spare outer cover lens.
Warranty card.

2-year warranty with 1 additional year (excluding the battery) if the product is registered within the first 6 months after purchase on www.optrel.com.

This bag provides protection during transport or when your welding helmet is not in use.
