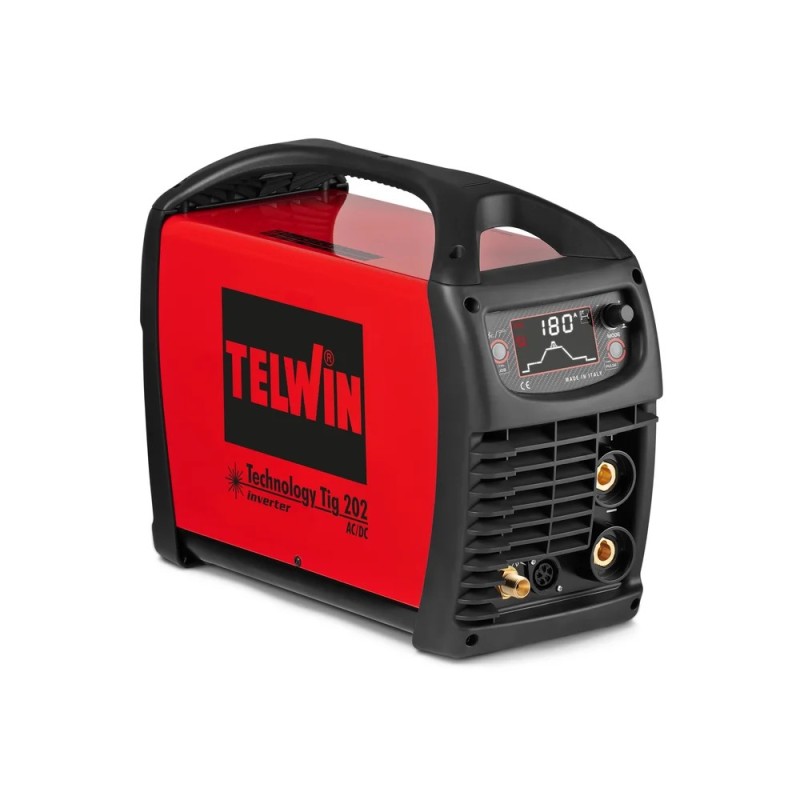

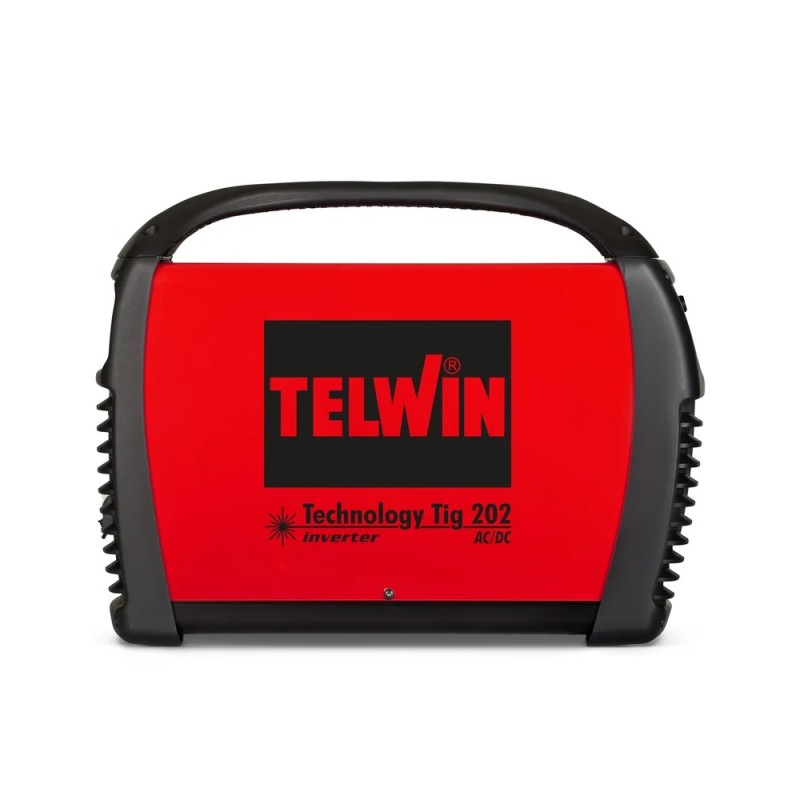

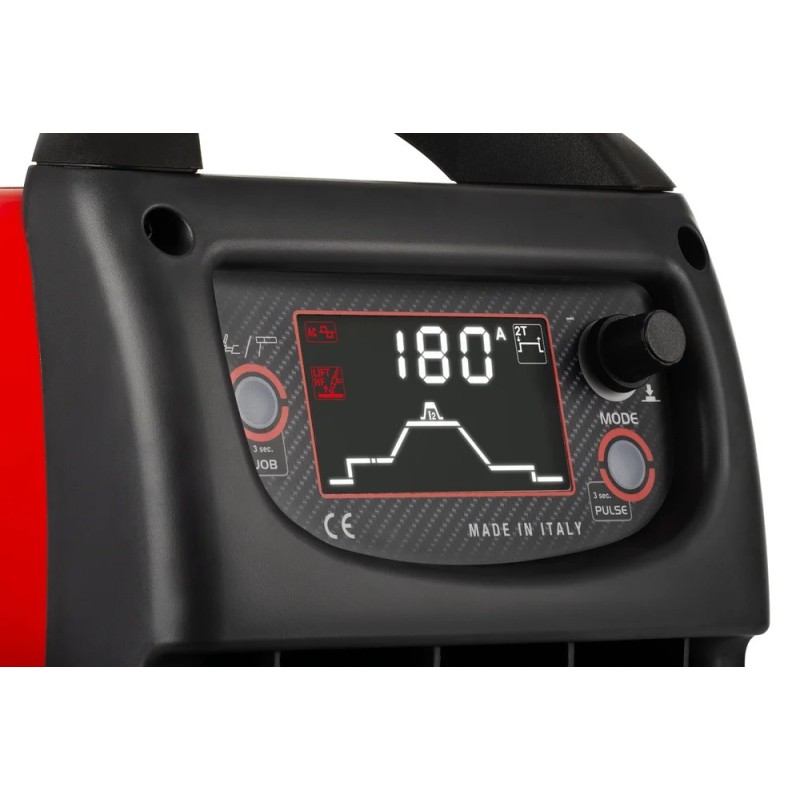

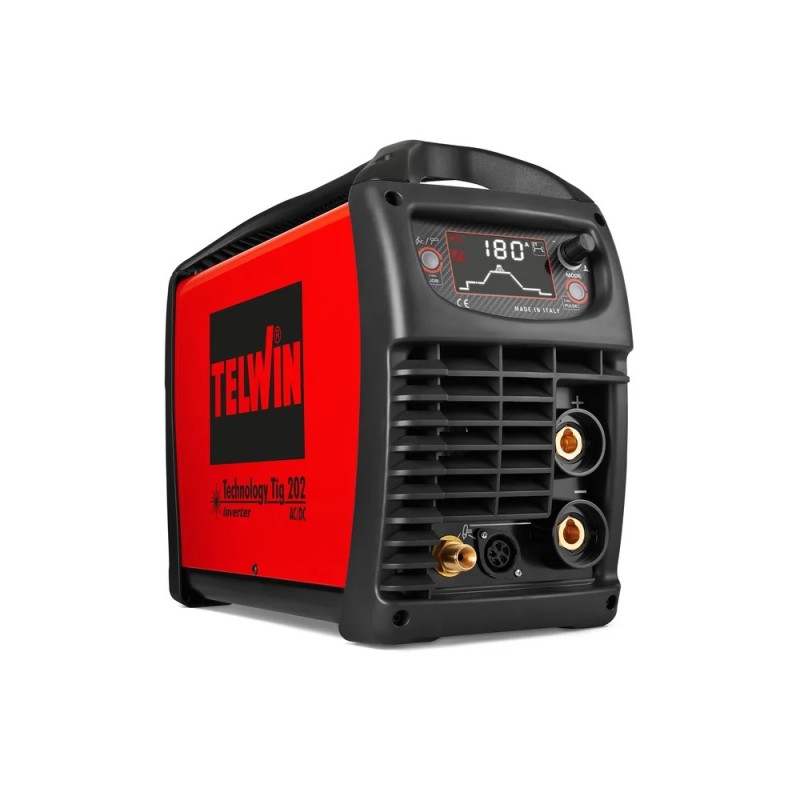

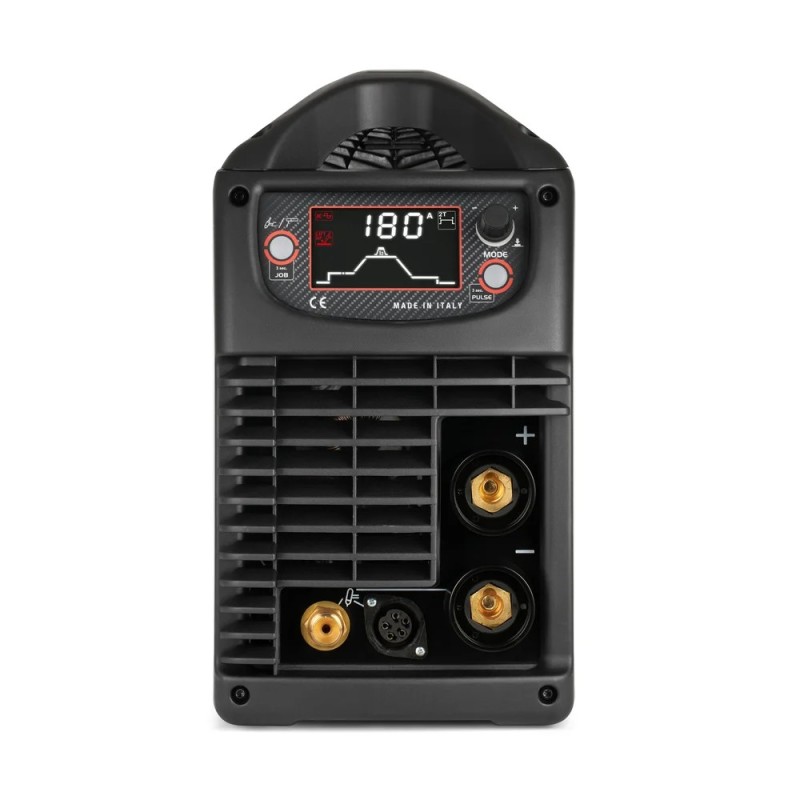

TELWIN - TIG AC/DC HF Technology 202 | Welding machine without accessories

This machine allows welding with tungsten electrodes (TIG welding) steel, stainless steel, copper, nickel ...including aluminium .

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High frequency CONTACTLESS ignition

TIG 2T/4T (manual or automatic welding)

TIG SPOT allows tacking of parts before welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor according to the current intensity and the welding duration.

VRD: Improves safety during welding operations in damp environments

It also features the PULSE function particularly suited for welding thin plates where low heat input to the workpiece is required and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision improves as well.
It also features the EASY PULSE system allowing immediate pulsed mode welding even if the welder is not familiar with TIG welding, thanks to automatic parameter adjustment

THINSPOT function, enabling fast and precise spot welding.

For gas connection of the machine, it is recommended to use fitting 804208.

This pack includes 4 products:

- 1 GYS PROTIG 201 AC DC TIG welder, HF ignition + 4 m torch and earth clamp 08742
- 1 rechargeable gas cylinder of 2.3 m3 without contract SOL Indus pure argon
- 1 column pressure regulator

By choosing this pack, you save €80 on purchase.

This unit enables welding with tungsten electrodes (TIG welding) on steel, stainless steel, copper, nickel...including aluminium.

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It comes with a 140A TIG torch with trigger, 4 m in length, plus a ground clamp.

It features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High-frequency arc starting WITHOUT CONTACT

TIG 2T/4T (manual or automatic welding)

TIG SPOT enables tack welding of parts prior to welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc extinction, thereby preventing crater formation at the end of the weld bead.

ARC FORCE: This process increases amperage when the welding arc is held short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: when welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics.

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor based on the current intensity and welding duration.

VRD: Improves safety during welding operations in damp environments

It also features the PULSE function, particularly suitable for welding thin sheet metal where low heat input to the workpiece is required, and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision improves as well.
It also features the EASY PULSE system, allowing immediate welding in pulsed mode even if the welder is not accustomed to TIG welding, thanks to automatic parameter adjustment.

THINSPOT function, enabling fast and precise spot welding.

For connecting the unit to gas, it is recommended to use fitting 804208.

The ASPECT® 200 AC/DC is equipped with advanced TIG AC/DC functions (4 waveforms, a pulsed mode, adjustable balance and offset), making it ideal for the most demanding TIG AC or DC welding applications.
It allows welding of materials up to 6 mm thick.

It offers a simple control panel with a bright digital display for easy visualisation and control of welding parameters.
2T and 4T mode selection
Innovative adjustment system via button control from the TIG torch.
Option to adjust via foot pedal or remote control
Spot mode.
Memory mode for saving your settings
Waveform selection.

Excellent electric arc performance = » Excellent ignition, fast and stable, minimum current 2A
Device "1 Phase Buck-boost Circuit" = » Low power consumption
» Bright digital display = Easy adjustment of all parameters
» Cooling unit and transport trolley = Easy transport on site » High robustness
» Encapsulated printed circuit board and "TRUE HD" manufacturing = High robustness
» Generator compatible = Ideal for outdoor job sites
» Advanced TIG AC/DC functions = 4 welding waveforms, Pulsed mode, adjustable Balance and Offset, simple control panel, self-adjustable AC current

To be used optimally and at its maximum capacity (200A) under intensive use, this unit must be paired with a cooling unit and a water-cooled torch.
The TIG setup can be converted to a water-cooled torch setup simply by adding a COOL ARC® 24 cooling unit.

In MMA mode, this unit features the following technologies:

Hot Start: Facilitates and speeds up arc ignition by providing a current surge to prevent electrode sticking.
Anti-sticking: Automatically reduces the output current in the event of a stuck electrode.
Arc Force: Temporary increase in welding current when the arc is too short.

The PROTIG 231 DC FV is a pulsed DC TIG welding generator, very compact and portable. Its PFC technology allows it to operate from 85 V to 265 V and to achieve a very stable arc even on 100 m site extension leads. In electrode welding, its Pulsed MMA mode facilitates vertical upward welding.

OPTIMISED DC WELDING
Secondary regulation: ensures optimal arc stability and constant current in all positions.
- TIG DC: provides quality welding on all ferrous materials such as steel, stainless steel as well as copper and its alloys.
- Pulsed TIG DC up to 2 kHz: controls the temperature of the weld pool, limits deformation and enables assembly of thin sheets from 0.3 mm.
- Adjustable SPOT from 0.1 to 25 sec: fast and precise tacking before welding thin sheets.
- 2 arc starting types: HF contactless or LIFT by contact for electrosensitive environments.
- 3 trigger modes: 2T, 4T and 4T LOG. Automatic torch detection: compatible with blade, dual-button and potentiometer torches
- 2 tacking modes: - Spot: adjustable tacking from 0.1 to 60 seconds of parts before welding.
- Pulse: adjustable tacking from 0.01 to 60 seconds on thin sheet before welding

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 5 mm).
Pulsed MMA: facilitates vertical upward welding (pipes/pipeline…).
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking on contact with the workpiece
- Hot Start: facilitates arc striking and is adjustable in seconds depending on the metal type
- Arc Force: momentary current increase in difficult welding situations.

MAXIMUM PRODUCTIVITY
Advanced secondary regulation for optimal arc stability and constant current in all positions.
Storage of up to 50 programs per process for repetitive tasks.
Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS). Automatic torch detection: compatible with blade, dual-button, potentiometer and Up&Down torches.
Remote controls (foot pedal or manual, optional) connectable without tools.
VRD activatable via an internal switch to lower the no-load output voltage to < 35 V.
Intelligent fan management to reduce power consumption, dust intake and unit noise.

IDEAL ON SITE
Accepts extension leads up to 100 m.
Reinforced body and anti-shock pads.
Compact and easy to move on site.
Protected against overvoltages up to 400 V (PROTEC 400)

This unit enables welding of steel, stainless steel and aluminum; ignition is either HF or LIFT type.
Its adjustment range is 5 to 350 A - Max current 350 A @35%
In MMA welding, it allows the use of electrodes from Ø 1.6 to 6 mm.

It also features the PULSE function, particularly suited for welding thin sheets where low heat input is required and adapted for welding in all positions.
When the pulse frequency increases, arc stability increases and therefore welding precision as well.
It also features the EASY PULSE system, allowing immediate pulsed welding even if the welder is not familiar with TIG welding, thanks to automatic parameter adjustment

THINSPOT function, enabling fast and precise spot welding.

It features the following functions:

TIG LIFT : Facilitates electrode striking.

TIG HF High-frequency CONTACTLESS ignition

TIG 2T/4T( manual or automatic welding)

TIG SPOT allows tack welding of parts before welding.

HOT START adjustable: additional starting power for electrodes that are difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc extinction, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overload and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor according to the current intensity and welding duration.

VRD : Improves safety during welding operations in wet environments

It also features the PULSE function, particularly suited for welding thin sheets where low heat input is required and adapted for welding in all positions.
When the pulse frequency increases, arc stability increases and therefore welding precision as well.
It also features the EASY PULSE system, allowing immediate pulsed welding even if the welder is not familiar with TIG welding, thanks to automatic parameter adjustment

THINSPOT, function enabling fast and precise spot welding.

Supplied with

1 water-cooled TIG torch ST 18A length 4 m.
1 dual-gauge regulator for refillable cylinder.
1 ground clamp + 25 mm² cable length 3 m
1 gas hose length 2 m
1 cart
1 cooling unit (coolant optional)

This machine allows welding with tungsten electrodes (TIG welding) on steel, stainless steel, cast iron, copper, nickel and titanium.

It also allows welding with rutile or basic electrodes (MMA welding kit optional).

It is supplied with a 140A TIG torch with trigger, 4 m in length + earth clamp.

It also features the following functions:

TIG LIFT: Facilitates electrode striking.

TIG HF High-frequency NO-CONTACT arc striking

TIG 2T/4T( manual or automatic welding)

TIG SPOT allows tack welding of parts before welding.

HOT START adjustable: additional striking power when an electrode is difficult to strike.

SLOPE DOWN adjustable: this system eliminates arc fade, thus preventing the formation of a crater at the end of the weld bead.

ARC FORCE: This process increases the amperage when the welding arc is kept short, which has the effect of increasing penetration and the mechanical strength of the weld bead.

ANTI STICKING: in the case of welding with coated electrodes, prevents electrode overloading and thus preserves its characteristics,

TIG BI LEVEL: two different welding current parameters can be selected during the welding process, PRE-GAS/POST-GAS

( automatically adjusted by the microprocessor according to the current intensity and welding duration.

It also features the PULSE function, particularly suited for welding thin sheets where low heat input to the workpiece is required, and adapted for welding in all positions.
As the pulse frequency increases, arc stability increases and therefore welding precision as well.

THINSPOT function, enabling fast and precise spot welding.

Supplied with

1 TIG ST 26 torch, length 4 m.
1 double-gauge regulator for refillable cylinder.
1 earth clamp + 25 mm² cable, length 3 m
1 rubber gas hose, length 2 m.

For the gas connection of the machine, it is recommended to use connector 804208.

The PROTIG 201L AC/DC represents the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminum, copper or titanium).
It offers very high precision across many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooler, it allows the use of more ergonomic TIG torches

6 TIG AC/DC welding processes

DC TIG: Ensures quality welding on all ferrous materials such as steel, stainless steel as well as copper and its alloys, titanium…
Pulsed DC TIG: Controls the temperature of the weld pool, limits distortion and thus enables the assembly of thin sheets from 0.3 mm.
DC TIG Spot: Pre-assembles ferrous metal parts by tack welding

AC Easy TIG: Simplifies use of the welding machine thanks to predefined parameters. The user only selects their tungsten electrode diameter on the interface
Standard TIG: Dedicated to welding aluminum and its alloys (Al, AlSi, AlMg, AlMn…). Alternating current ensures prior cleaning of the aluminum for a quality weld.
AC TIG Spot: Pre-assembles aluminum parts by tack welding.

2 coated electrode welding modes

Standard MMA: Accepts basic and rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates vertical upward welding (pipes/pipeline...).

Usage assistance for the welder

2 ignition types: HF contactless or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press it again to stop welding.
- 4T "LOG": the operator can switch at any time between 2 welding currents with a brief trigger pulse (hot current and cold current)

MMA welding assistance: - Antisticking: reduces the risk of electrode sticking upon contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable according to metal type
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is delivered only when the electrode is in contact with the workpiece (not activated by default).

• Storage of up to 50 programs per process

• Current/voltage display after welding (verification of WPS/PQR compliance)
and connectivity for remote controls (foot pedal, manual remote control)

The TITANIUM 230 AC/DC FV is a single-phase TIG AC/DC welding generator. Smart and connected, it offers extremely precise arc control and industrial welding performance up to 230 A (16 A fuse) thanks to its integrated power factor corrector. It combines excellent ergonomics and an exceptional user experience with advanced welding functions

6 TIG WELDING MODES
DC Standard: welding with smooth current on most ferrous materials.
DC Pulsed: allows parts to be assembled while limiting heat input (pulses up to 2.5 kHz).
FastPulse: pulses up to 20 kHz on special steels.
AC Standard: welding of aluminium and its alloys (Al, AlSi, AlMg, AlMn, etc.).
AC Pulsed: precise penetration control based on AC frequency setting (pulses up to 500 Hz).
AC Mix: alternating AC and DC current to increase welding speed

TIG WIZARD SOLUTION
Patented synergic mode for maximum productivity with tacking and welding of Aluminium, Steel, Stainless Steel and Copper parts with or without filler metal.
5 joint types: Butt (BW), Fillet (FW), Inside corner (BP), Outside corner and wire splicing.
Wizard Lab for performing complex welding cycles

OPTIMIZED SETTINGS
4 tacking modes:
- Spot / Multi Spot: traditional tacking prior to welding thin sheet metal.
- Tack / Multi Tack: ultra-precise, oxidation-free tacking reducing the risk of distortion.
3 arc ignition types: Lift, HF and Touch.HF (timed high-frequency ignition).
3 trigger modes: 2T, 4T and 4T LOG
AC waveform shaping settings for improved arc control and penetration.
E-TIG mode ensures the welder maintains the correct welding power regardless of the torch position relative to the workpiece (welding energy control).

MAXIMUM CONNECTIVITY
Precisely measured energy input.
Traceability of all weld beads in accordance with EN 3834 standard.
Welding accessory calibration mode (refines energy calculation).
Connectable via an optional kit (037960) for use on a robot.
User mode to share the product with multiple welders.
Free online tool available for interface customization.
Save, from a USB key, user JOBs (500 max.) as well as machine configuration.
Compatible with lamellar, double-button, potentiometer and Up & Down torches.
Complete machine and synergy update via USB key.
Remote controls (foot pedal or manual, optional) connectable without tools.
MMA, MMA AC and Pulsed MMA modes (electrodes weldable up to Ø 8 mm).
VRD (Voltage Reduction Device) activatable to lower the no-load output voltage to < 35 V.
"FV" technology guarantees a consistently stable electric arc even in the event of mains voltage variations (85 to 265 V), generator power supply or use of very long power cables.

The PROTIG 201 AC/DC is the professional TIG welding solution for joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper or titanium).
It offers very high precision across many fields such as craftsmanship, maintenance or pipework.
Equipped with a water cooling unit, it allows the use of more ergonomic TIG torches.

6 TIG AC/DC welding processes

TIG DC: Ensures quality welding on all ferrous materials such as steel, stainless steel, but also copper and its alloys, titanium…
Pulsed TIG DC: Controls the temperature of the weld pool, limits distortion and thus allows the joining of thin sheets from 0.3 mm.
TIG DC Spot: Pre-assembles ferrous metal parts by tacking

TIG AC Easy: Simplifies the use of the welding unit through predefined parameters. The user only selects the diameter of their tungsten electrode on the interface
TIG AC Standard: Dedicated to welding aluminium and its alloys (Al, AlSi, AlMg, AlMn…). The alternating current ensures prior cleaning of the aluminium for a quality weld.
TIG AC Spot: Pre-assembles aluminium parts by tacking.

2 coated electrode welding modes

Standard MMA: Accepts basic and rutile electrodes up to Ø 4 mm
Pulsed MMA: Facilitates welding in the upward vertical position (pipes/pipeline...).

User assistance for the welder

2 ignition types: HF non-contact or LIFT for electrosensitive environments
3 trigger modes: - 2T: maintain pressure on the trigger throughout the weld.
- 4T: to start welding, hold the trigger once then press again to stop welding.
- 4T «LOG»: the operator can switch between 2 welding currents at any time with a brief trigger pulse (hot current and cold current)

MMA welding aids: - Antisticking: reduces the risk of electrode sticking upon contact with the workpiece
- Hot Start: facilitates arc ignition and is adjustable depending on the metal type
- Adjustable Arc Force: regulates arc length variations

VRD (voltage reduction device): welding current is only delivered when the electrode is in contact with the workpiece (not activated by default).

• Memorisation of up to 50 programs per process
• Connectivity for remote controls (foot pedal, manual remote control)
• Current/voltage display after welding (verification of WPS/WPQR compliance)
• Reinforced casing with anti-shock pads

Unit supplied with:
1 double-button torch SR26, length 4 m
1 earth clamp + cable, length 2 m
1 electrode holder
1 accessory kit

Rogue ET181i is a DC HF-start TIG and MMA welding machine built with the latest inverter technologies to guarantee an extremely stable welding arc, ideal for working on steel, stainless steel, brass, cast iron...

The electronic boards of the Rogue ET181i are protected by a special coating that insulates them from moisture and dust (IP23S protection). The body is very robust and the dimensions are compact, allowing the operator to transport and use this welding machine in a workshop or on a job site even in adverse environmental conditions.

The Rogue ET181i can generate a maximum welding current of 180 A and has a duty cycle of 116 A at 60%; these characteristics make this welding machine ideal for installation, maintenance and light fabrication work.

The control panel of the Rogue ET181i is easy to use and the convenient LCD screen allows the operator to accurately view the welding parameters. From the control panel, it is possible to adjust the TIG welding parameters to adapt the process to the needs the operator must face: LIFT or HF trigger mode, pre and post gas, initial and final current, upslope and downslope ramp, 2T or 4T.

If you use the Rogue ET181i in MMA mode for MMA welding (electrode holder optional), it is possible to select the percentage of Arc-Force and hot start that best suits the welder's operating style; furthermore, from the control panel, it is possible to select the welding mode for CELLULOSE-coated electrodes.

The Rogue ET 181i comes with:

- Instruction manual
- Shoulder strap for transport
- ESAB SR26 TIG torch 4 metres with a grey Cerium tungsten electrode Ø 2.4 mm)
- Ground cable cross-section 16mm2 - length 3 m
- Gas hose with quick connector

This machine replaces the ESAB ROGUE ET180i model and additionally features the PULSE function compared to that previous model.

The Pulse function of the Rogue allows welders to better control heat input and arc stability. The controlled pulse action helps create a stable arc, avoiding excessive spatter and minimizing the risk of weld defects or the need for post-weld cleanup. The Rogue's Pulse technology facilitates penetration and fusion in the welding process, which is essential for creating strong and durable weld beads and ensuring the structural integrity of fabricated components. Pulse technology helps minimize the heat-affected zone, thereby reducing the likelihood of material distortion or unintended metallurgical changes.

This ESAB Renegade ET 210Ip Advanced is a single-phase professional TIG welding unit with high-frequency ignition and MMA, with protection rating IP23, capable of being used even in the most demanding environments.

Thanks to its low weight, the various lifting points provided on the outer body and the high-quality shoulder strap, the Renegade ET 210Ip Advanced can be transported easily.

Renegade ET 210Ip Advanced is equipped with an integrated active PFC circuit that allows it to be used even on a low-power network or when an extension cord is used (length up to 100 m).

Easy to use. It provides direct access to parameter settings and features a
simple and intuitive user interface that allows you to read the parameters, even from a distance.

It allows MMA welding of rutile, basic, stainless steel, cast iron... and also cellulosic electrodes.

Technical specifications:

- High robustness with protection rating IP23, for use in workshop and on job sites, in demanding environments

- Pulsed TIG up to 999 Hz to increase control of heat input and weld pool

- Integrated PFC circuit for a stable arc even with an extra long power cable, up to 100 m

- Intuitive and quick-to-configure panel, for greater precision and reduced downtime

- Dual functionality - Current mode trigger to switch between two output current levels to control
heat input and weld pool size

- 4.3-inch color screen with visual display of settings

- Easy access to up to 10 personal programs via the flashlight button

- Modular system to connect the cooling unit (optional) and the trolley (optional)
without tools

Examples of application sectors
Shipbuilding and offshore
Civil construction
Pipe manufacturing
Repair and maintenance
Heavy fabrication
Industrial and general manufacturing
Mining
Steel formwork

Delivered with:
1 cooling unit EC 1001
1 earth clamp + 25 mm² cable length 3 m - 13 mm connector
1 strap allowing shoulder carrying of the unit when working at height + anchor points for lifting.
1 TIG torch Exeor SR 21 length 4 m
1 gas hose length 4 m

Electrode holder optional

Welding and pickling with a single TIG machine
The Minarc T223 AC/DC is a brand new 220 A single-phase AC/DC TIG welding unit with an integrated electrolytic weld pickling process.

The Minarc T223 AC/DC includes standard and pulsed welding functions, as well as memory channels and remote control options.
The adjustment controls are easy to use, and the large, clear color screen features a shock protection cover.

The new MAX Weldclean process is simple and quick to use.
Converting the TIG torch to pickling mode takes only a few moments. Your welds are clean, ready and perfect faster.

You weld, clean the welds with a low current and a cleaning solution, then neutralize with water.

The unit comes with:
- a TX225G torch with a length of 4 m
- A ground clamp + cable

The PROTIG 200 AC/DC (200 A) is a versatile dual-process welding machine for TIG AC/DC and MMA (coated electrode) welding, in a compact and portable format. It allows joining all types of materials up to 4 mm thick (steel, stainless steel, aluminium, copper, magnesium or titanium). Its advanced secondary regulation ensures optimal arc stability and constant current in all positions.

5 TIG WELDING MODES

In DC mode
Standard DC: welding in direct current on the majority of ferrous materials.
Pulsed DC: limits heat build-up in the workpieces. Ideal for very thin sheet metal.

In AC mode
Pulsed AC: limits heat build-up in the workpieces. Ideal for very thin sheet metal.
AC Easy: simplifies use of the welding machine thanks to predefined parameters. The user only selects the diameter of their tungsten electrode on the interface.

OPTIMISED TIG SETTINGS
SPOT mode (TIG DC or AC): fast and precise tacking before welding thin sheet metal.
2 types of arc starting: HF contactless or LIFT by contact for electrically sensitive environments.
3 trigger modes: 2T, 4T and 4T LOG. Automatic torch detection: compatible with latching and dual-button torches.

MMA WELDING
MMA: Basic and Rutile electrodes (up to Ø 4 mm).
Pulsed MMA: facilitates vertical uphill welding (pipes/pipeline…).
3 integrated welding aids:
- Antisticking: reduces the risk of electrode sticking when in contact with the workpiece
- Adjustable Hot Start: facilitates arc striking and is adjusted in seconds according to the metal type
- Arc Force: momentary increase in current in difficult welding situations.

MAXIMUM PRODUCTIVITY
Memory for up to 30 programs per process.
Advanced menu for optimal welding control.
Current and voltage display during and after welding (DMOS/QMOS).
Reinforced casing with anti-shock pads.
Compact and easily movable on site.
Intelligent ventilation management to reduce power consumption, dust intake and machine noise.
Protected against overvoltages up to 400 V (PROTEC 400).

Delivered with:
1 TIG 26DB torch length 4 m, supplied with 1 Ø 1.6 electrode + 1 Ø 2.4 mm Cerium grey electrode (for stainless steel and steel welding) + A gas diffuser and an electrode holder for both tungsten electrode diameters + A GR5 ceramic nozzle and a GR7 ceramic nozzle
1 earth clamp + cable 25 mm² section length 2 m
1 electrode holder + cable 25 mm² section length 2 m

This ESAB Renegade ET 210iP is a single-phase professional TIG welding unit with high-frequency ignition and MMA, with protection rating IP23, capable of being used even in the most demanding environments.

Thanks to its low weight, the various lifting points provided on the outer body and the high-quality shoulder strap, the Renegade ET 210Ip Advanced can be transported easily.

Renegade ET 210iP is equipped with an integrated active PFC circuit that allows it to be used even on a low-power network or when an extension cord is used (length up to 100 m).

Easy to use. It provides direct access to parameter settings and features a
simple and intuitive user interface that allows you to read the parameters, even from a distance.

It allows MMA welding of rutile, basic, stainless steel, cast iron... and also cellulosic electrodes.

Technical specifications:

- High robustness with protection rating IP23, for use in workshop and on job sites, in demanding environments

- Pulsed TIG up to 999 Hz to increase control of heat input and weld pool

- Integrated PFC circuit for a stable arc even with an extra long power cable, up to 100 m

- Intuitive and quick-to-configure panel, for greater precision and reduced downtime

- Dual functionality - Current mode trigger to switch between two output current levels to control
heat input and weld pool size

- Modular system to connect the cooling unit (optional) and the trolley (optional)
without tools

Examples of application sectors
Shipbuilding and offshore
Civil construction
Pipe manufacturing
Repair and maintenance
Heavy fabrication
Industrial and general manufacturing
Mining
Steel formwork

Delivered with:
1 earth clamp + 25 mm² cable length 3 m - 13 mm connector
1 strap allowing shoulder carrying of the unit when working at height + anchor points for lifting.
1 TIG torch SR-B 26 length 4 m
1 gas hose length 4 m

Electrode holder optional
